1511IS Inline Seismic Universal Bellows
Information at a Glance
Series
1500 Hyflex Bellows Expansion Joints
Material
Steel
Size
2-240 in. / 50-1200 mm
Pressure
≤150 PSI / 10 Bar
Motion
4+ in. / 100+ mm
Canadian Registration
This product is registered throughout Canada under
CRN 0D9278.59870YTNADD3
Other Products
1511PBH/G-1512PBH/G Inline Pressure Balanced Universal Hinge or Gimbal Expansion Joints
3501IS-3502IS Single Inline Seismic & Settling Ext. Pres. Expansion Joints
Product Description

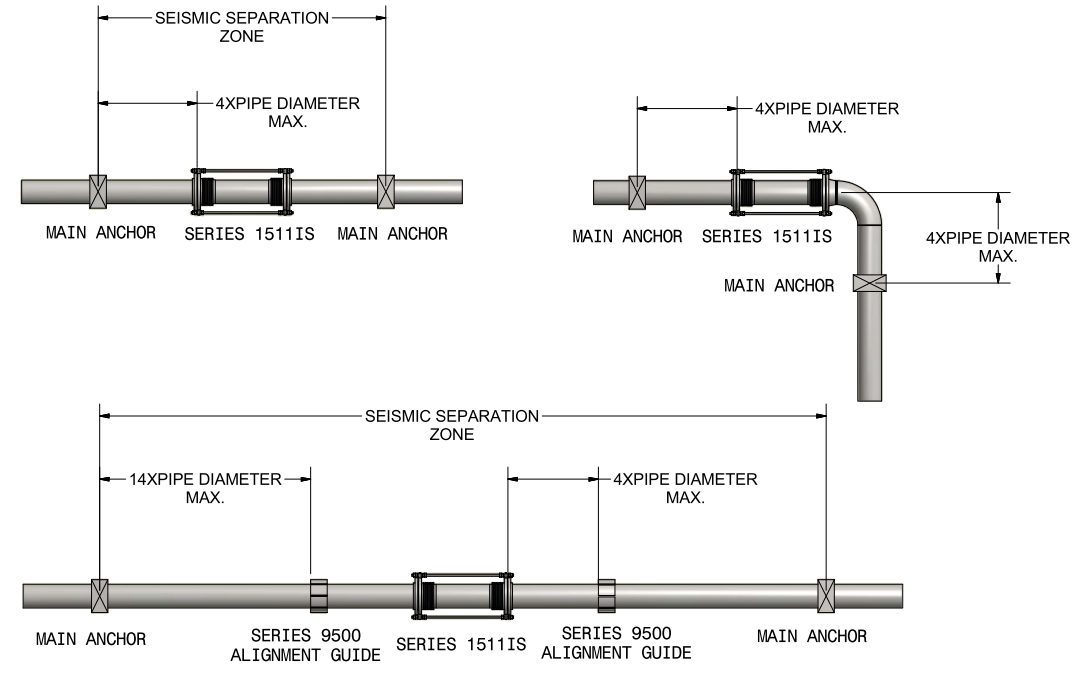

Hyspan Hyflex Inline Seismic universal expansion joints are available in common pipe sizes at 150 PSIG (10.3 BARG), to 500° F (260° C). Other pressures and temperatures are available.
Standard designs include 304 stainless steel multiply bellows. Also available are 316, 321, and 347 stainless steels, and duplex and nickel alloys. End fittings include flanges and weld ends in many configurations. Rods and Spherical washers are included. Liners, Shrouds, Hinges, Gimbals and other options are available.
Ordering Information
Hyspan products are available from Sales Representatives and Distributors, or they can be purchased direct from the factory. The minimum factory order for open account customers, COD shipments, or bank card sales is $100.00 (USD). All major credit or debit cards are accepted. The minimum order for new account applicants is $100.00. Our Confidential Credit Application can be downloaded and forwarded to Hyspan for processing. All orders are subject to the following Terms and Conditions, and the above warranty applies to all material. Please read these documents.
Confidential Credit Application (13.9 KB), can be completed on line.
Downloads
General Downloads
- Catalog
- Approval Submittal
- Specifications
- Installation Instructions
- Warranty
